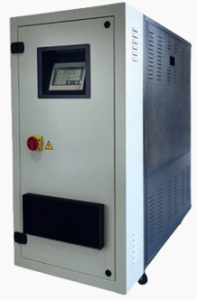

Pressurised Oil Circulating Temperature Control Units 300°C

• Standard heating capacities up to 96 kW (larger units available on request)
• Stainless steel cooling heat exchangers
• 200, 300 or 350°C ranges
• Highly efficient air elimination system
• Magnetic drive pumps on 300/350°C models
• Large expansion tanks
• Low watts density, long life stainless steel heating elements with solid state control
• Full microprocessor with dual temperature display, alarms and diagnostics
• Castor mounted for ease of mobility

The Ultimate in high heat control accuracy

The unique on board microprocessor control provides access to temperature setting and full machine operation via a user friendly multi-page menu screen.

Low watts density stainless steel heating elements prolong the life expectancy of the heat transfer oil medium far beyond that of many others on the market.

Large integral expansion tanks facilitate the use on applications containing large volumes of oil.

Temperature ranges of 200, 300 and 350°C are available. Coupled with heating capacities from 9 to 96 kW and a range of pump options, this versatile range of machines can be applied to a wide variety of uses.

Manufactured from the highest quality materials the units are designed to withstand the most arduous production environments providing real value for money.

SPECIFICATION (300°C oil unit)

• Maximum temperature: 300°c
• Heating capacity: 9 Kw to 96 Kw
• Cooling capacity: 120 Kw or 230 kW
• Pump type: Magnetic drive pump
• Pump flow: 60ltr/min or 90ltr/min *Optional: 200ltr/min
• Voltage: 400v, 3ph, 50-60hz + PE

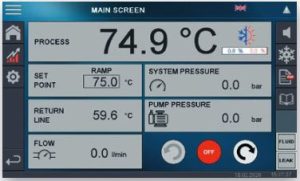

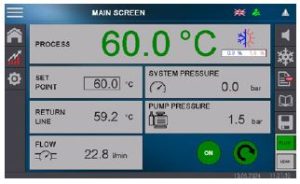

The 7” touchscreen offers high brightness and speed, ensuring clear and smooth visualization. The user interface provides
quick access to desired funcions. Key process information is presented in a structured and easy to interpret way form such as graphs, alarms or status
indicators.

Ready for Industry 4.0, offering advanced connectivity and compatibility
with intelligent systems.

Available interfaces (on request):

• OPC UA
• TTY 20mA
• Profinet
• RS 485
• RS 232
• Analog signals IN/OUT 4.20mA

TOUCH SCREEN CONTROLLER FEATURES (300°C oil unit)

• PID temperature control
• Temperature control On/Off
• Temperature ramp in heating and cooling
• Temperature control by external probe without contact with liquid (type J or PT1000)
• Heating through solid state relays
• Auto tuning
• Pressure display at pump outlet
• Return temperature display
• Safety thermostat
• Temperature, pressure and flow graphics with download option on USB device
• Digital input On/Off pump
• Analogy outputs of 4.20mA output and return temperature
• Analogy input of 4.20mA setpoint value
• Language selection
• Visual and acoustics alarm
• Alarm history
• System pressure display
• Electrical cable supply
