Oil Circulating Temperature Control Units 200°C

• Standard heating capacities up to 96 kW (larger units available on request)
• Stainless steel cooling heat exchangers
• 200, 300 or 350°C ranges
• Highly efficient air elimination system
• Magnetic drive pumps on 300/350°C models
• Large expansion tanks
• Low watts density, long life stainless steel heating elements with solid state control
• Full microprocessor with dual temperature display, alarms and diagnostics
• Castor mounted for ease of mobility

The Ultimate in high heat control accuracy

The unique on board microprocessor control provides access to temperature setting and full machine operation via a user friendly multi-page menu screen.

Low watts density stainless steel heating elements prolong the life expectancy of the heat transfer oil medium far beyond that of many others on the market.

Large integral expansion tanks facilitate the use on applications containing large volumes of oil.

Temperature ranges of 200, 300 and 350°C are available. Coupled with heating capacities from 9 to 96 kW and a range of pump options, this versatile range of machines can be applied to a wide variety of uses.

Manufactured from the highest quality materials the units are designed to withstand the most arduous production environments providing real value for money.

Heating capacity 6 to 30 kW

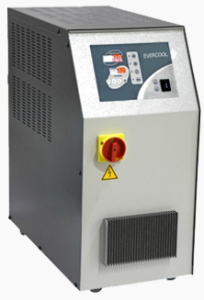

Standard 200°C oil units with display PCB card.

SPECIFICATION (200°C oil unit)

• Maximum temperature: 200°c
• Heating capacity: 6 Kw to 30 Kw
• Cooling capacity: 20 Kw or 60 Kw
• Tank capacity: 20ltrs / 35ltrs / 70ltrs
• Pump flow rate: 60ltr/min *Optional 200ltrs/min
• Pump max.pressure: 3.8 bar
• Hydraulic process connections: 3/4″
• Hydraulic cooling connections: 1/2″
• Voltage: 400v, 3ph, 50-60Hz + PE
